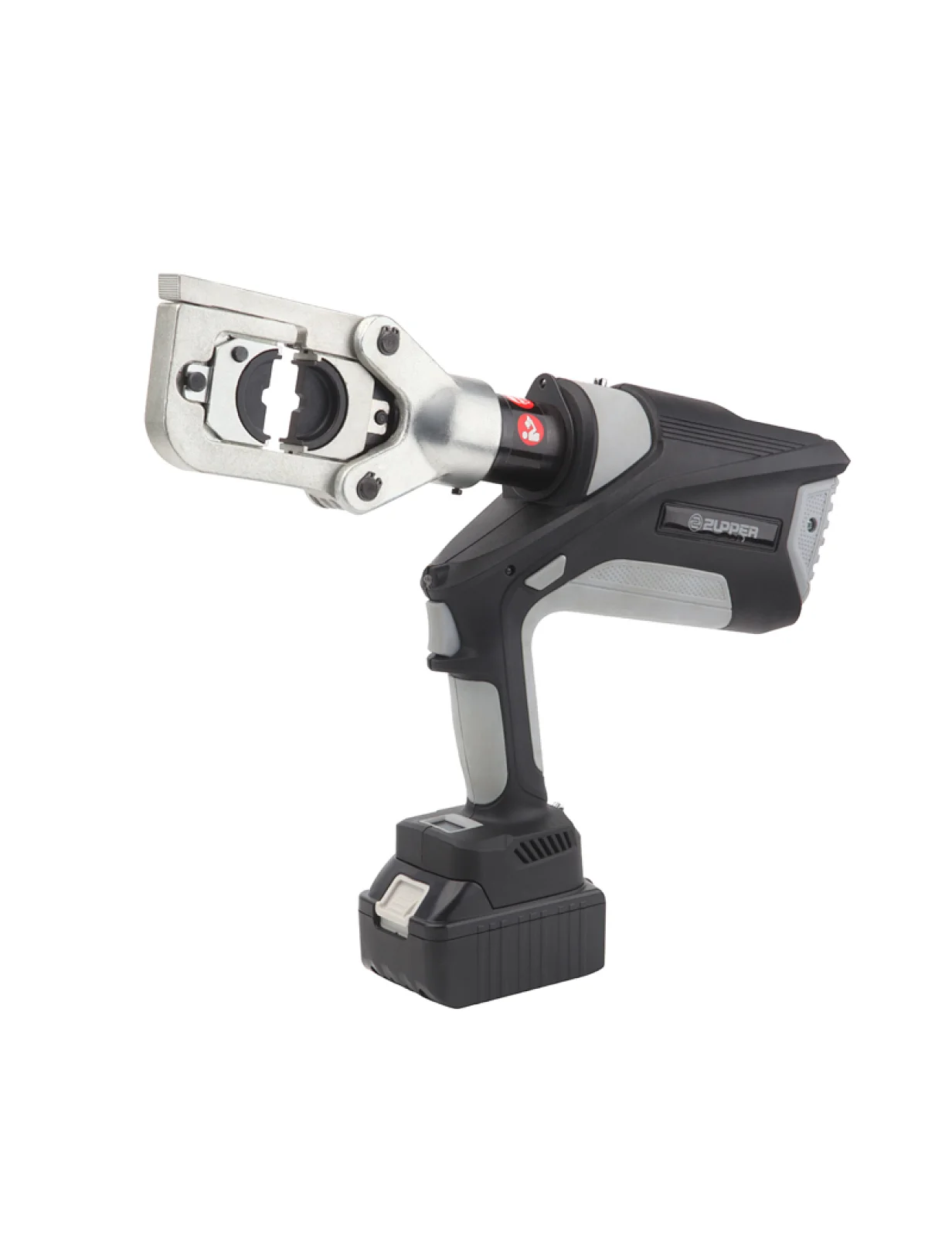

• Specification Code:EB-60UNV1

Crimping force: 60KN
Stroke：42mm
Packing:Plastic box
Cutting/Charge::70 times
Cutting range:Φ40mm(Cu/Al and armoured cable)
Crimping/Charge:160times
Crimping range:16-300mm2
Punching/Charge:100 times
Punching range:￠22.5-61.5mm
Working cycle:3-15s
Voltage:18V
Capacity: 4.0Ah
Charge time: 80mins
Package:plastic box
Crimping die: 16‚25‚35‚50‚70‚95‚120‚150‚185‚240‚300mm2
Punches & die(Type C):22.5‚28.3‚34.6‚43.2‚49.6‚61.5mm
Blade: 1 set
Adapter for crimping:1pc
Adapter for punching:1pc
3/4"‚16UN Draw stud: 1pc
7/16"‚ 20UN Draw stud: 1pc
Spacer:1pc
Battery: 2 pcs
Charger:1pc
sealing ring of cylinder:1set
sealing ring of safety valve:1set
