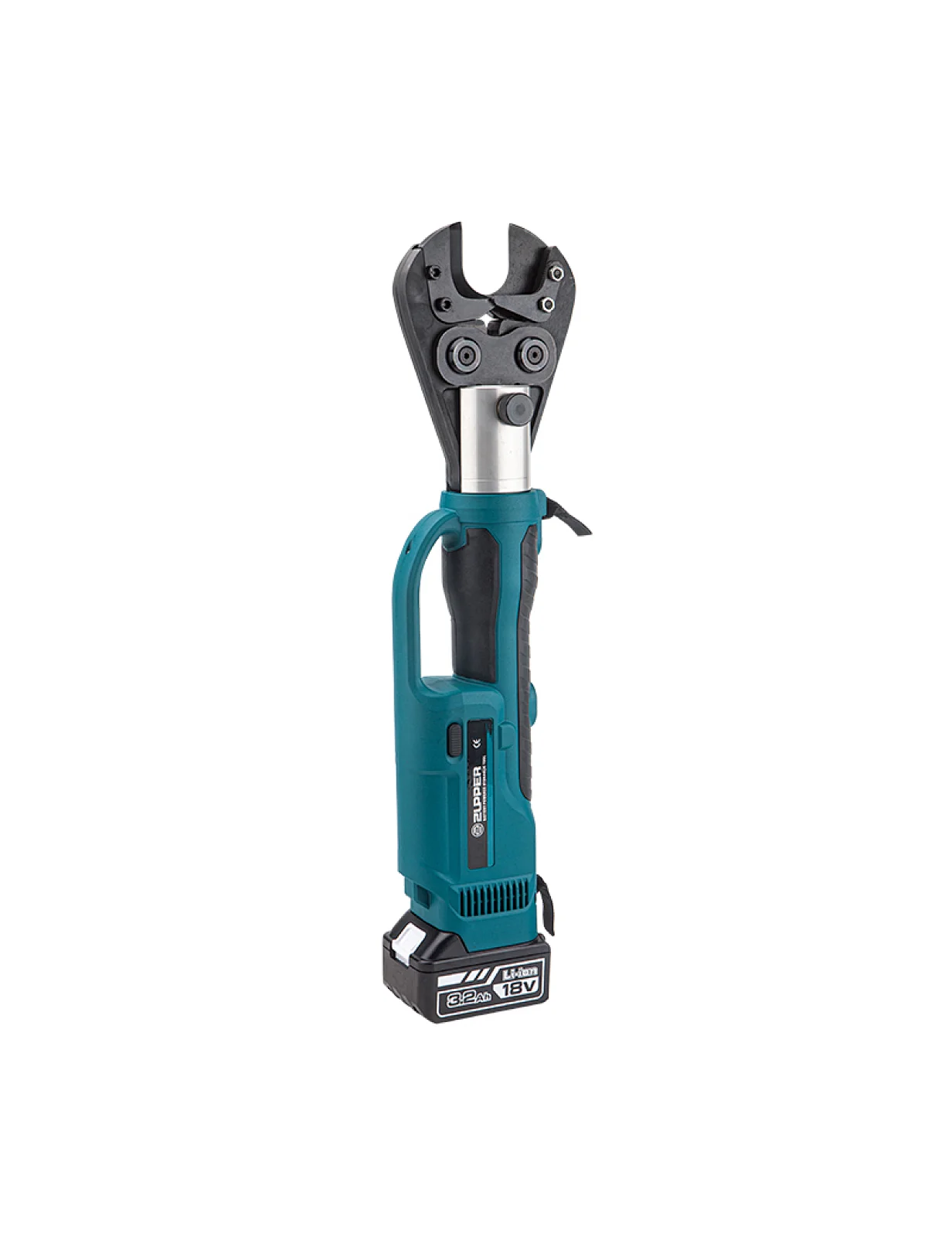

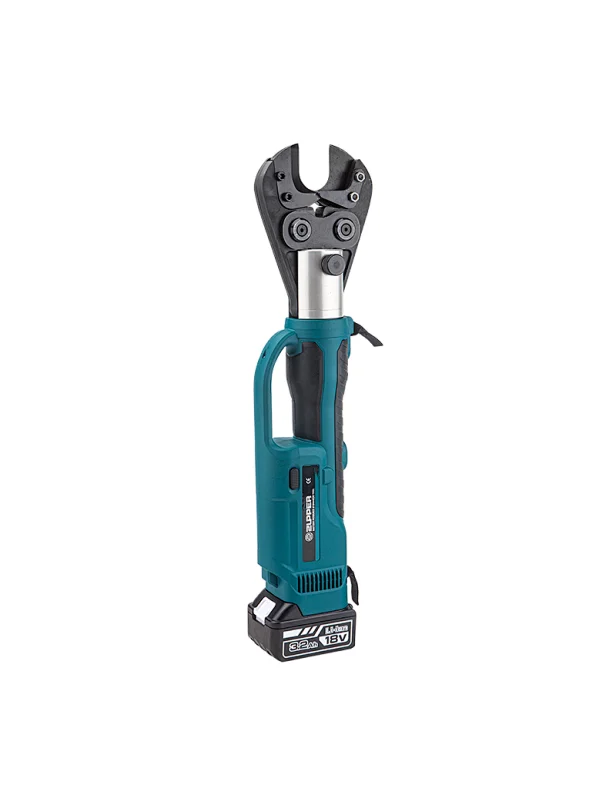

• Specification Code:PZ-400C

Max. output: 32KN
Stroke: 40mm
Max cutting: Cu/Al cable Φ40mm
Crimping range: Cu 16-400mm²
Time/work:3~6s(depend on the dia of cable)
Voltage/capacity: 18V/4.0Ah
Charging time: Approx.80mins
Charging voltage: AC 100V~240V ;50~60Hz
Package: Plastic box
Weight: 3.9kgs(without jaws and battery)
Size of tool: 450×81×128mm
Crimping dies:
16‚25‚35‚50‚70‚95‚120‚150‚185‚240‚300‚400mm²
Crimping head: 1pc
Cutting head: 1pc
Battery: 2pcs
Charger: 1pc
Sealing ring of cylinder: 1set
Sealing ring of safety valve: 1set
