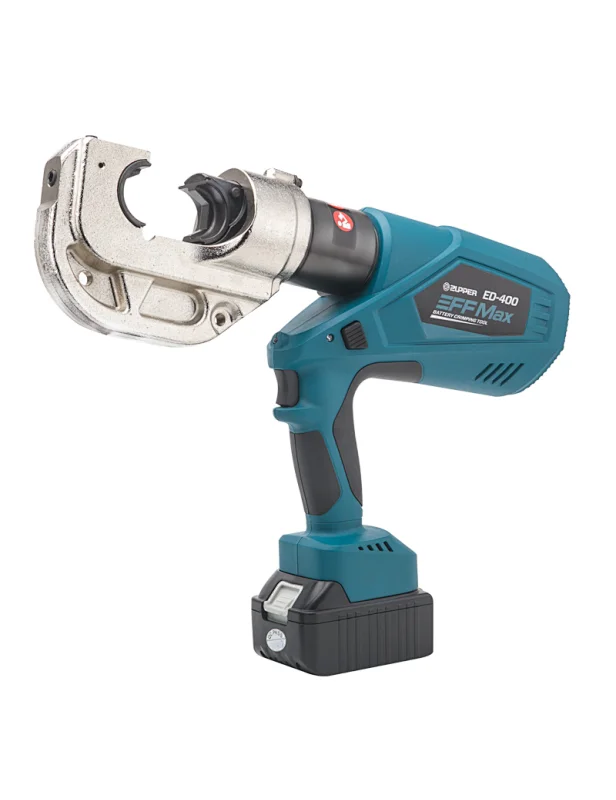

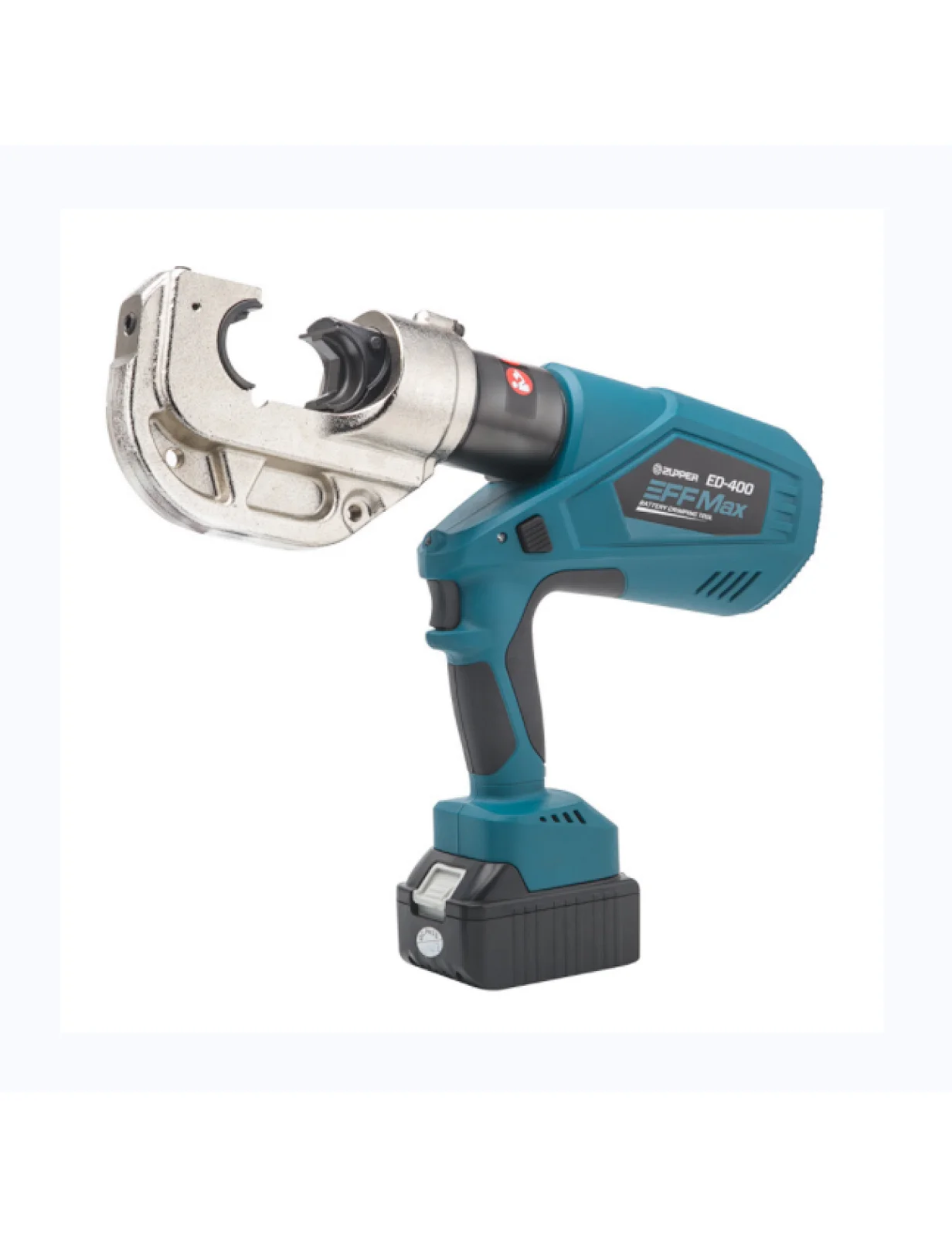

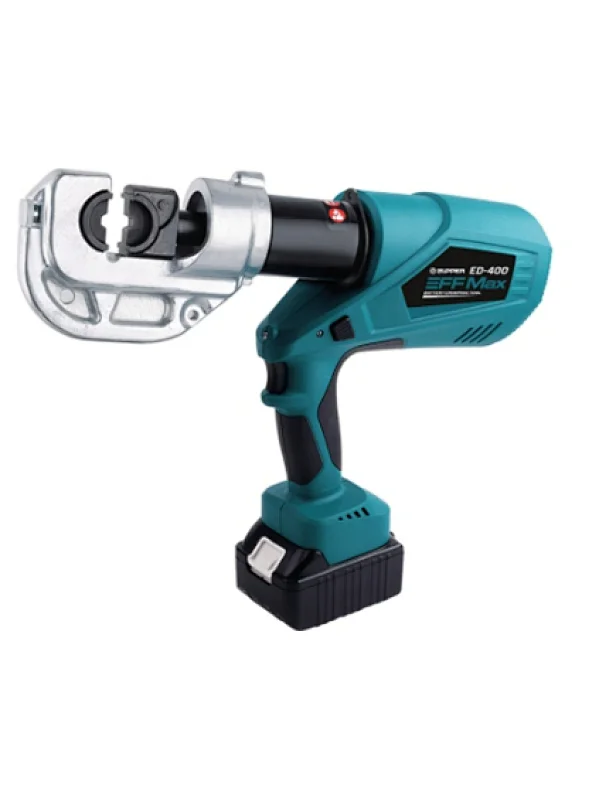

• Specification Code:ED-400

Rated pressure: 120KN
Stroke: 42mm
Oli capacity: 160ml
Max crimping: Cu 400mm²/Al 300mm²
Cycle time: 5-8s(Cu 150mm²)
Cycles/charger: Approx. 120 cycles(CU 150mm²)
Voltage/capacity: 18V/4.0Ah
Charging time: 80mins
Charging voltage: AC 100V-240V; 50-60Hz
Package: Plastic box
Weight incl.battery: 7.3kgs

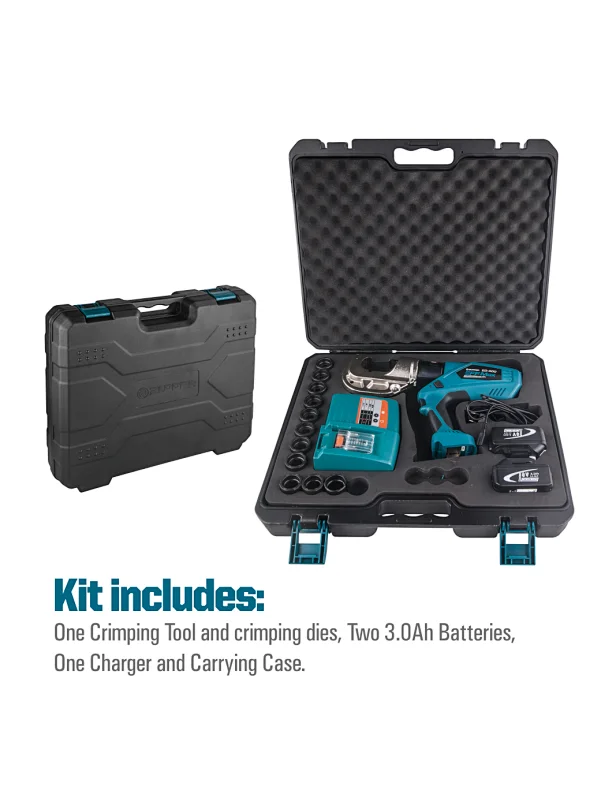

ACCESSORIES:
Crimping dies: 16‚25‚35‚50‚70‚95‚120‚150‚185‚240‚300‚400mm²
Battery:2 pcs
Charger:1pc
Sealing ring of cylinder: 1set
Sealing ring of safety valve: 1set
