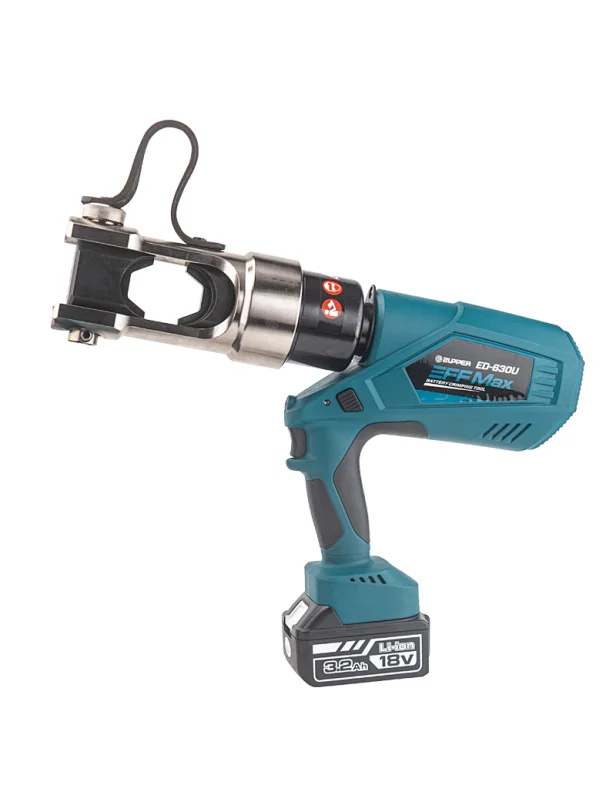

• Specification Code:ED-630U

Crimping force:180KN
Stroke:27.5mm
Crimping range: Cu 16-630mm²/Al 10-500mm²
Time/work: 7-15s (depend on the dia of cable)
Cycles/charger: 130cycles(Cu 150mm²)
Voltage:18V
Capacity:4.0Ah
Charging time:80mins
Package: plastic box
Weight: 8.7kgs
Size of tool: 425×343×84mm
ACCESSORIES:
Crimping dies 16‚25‚35‚50‚70‚95‚120‚150‚185‚240‚300‚400‚500‚630mm²
Battery: 2pcs
Charger: 1pc
Sealing ring of cylinder: 1 set
Sealing ring of safety valve: 1 set
