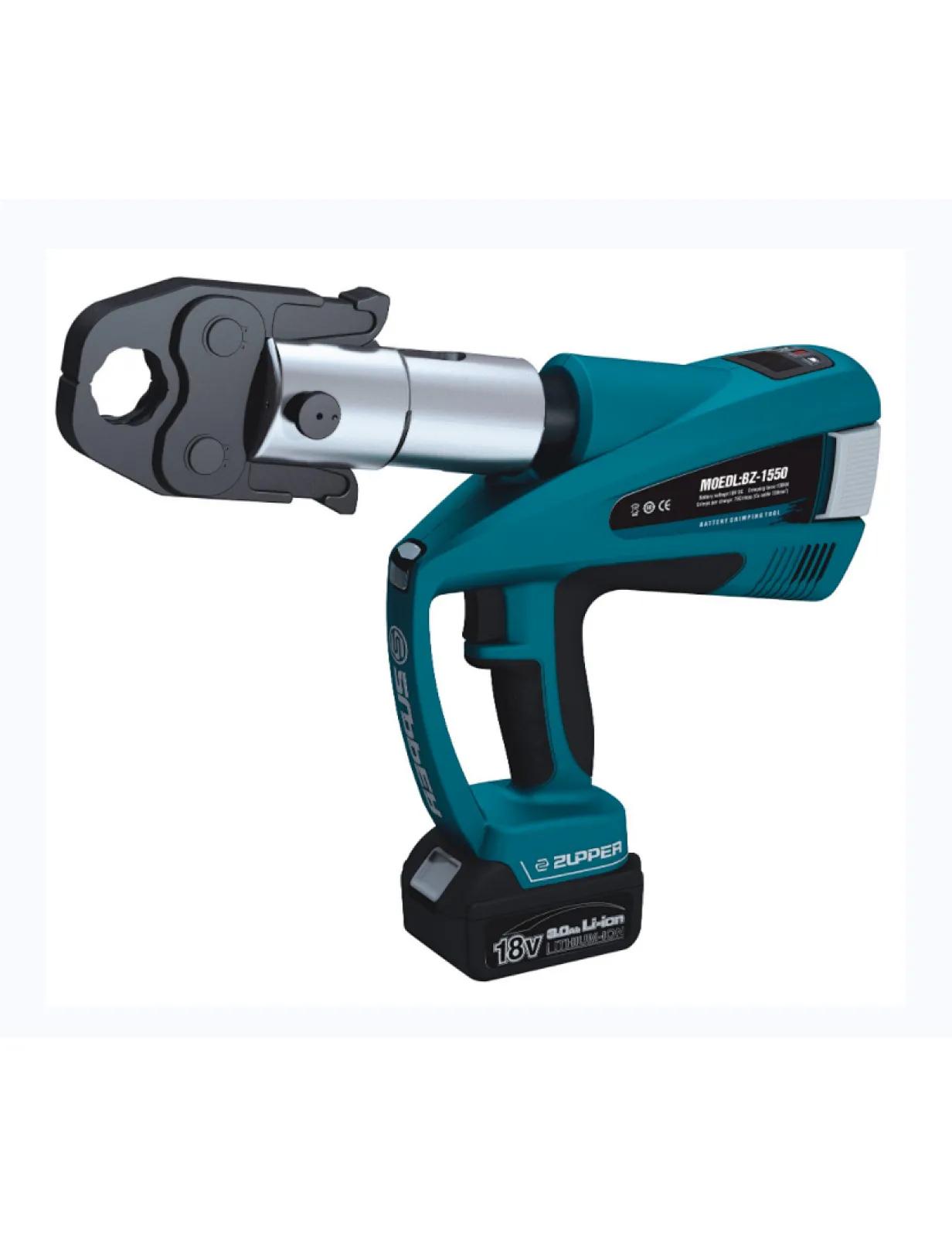

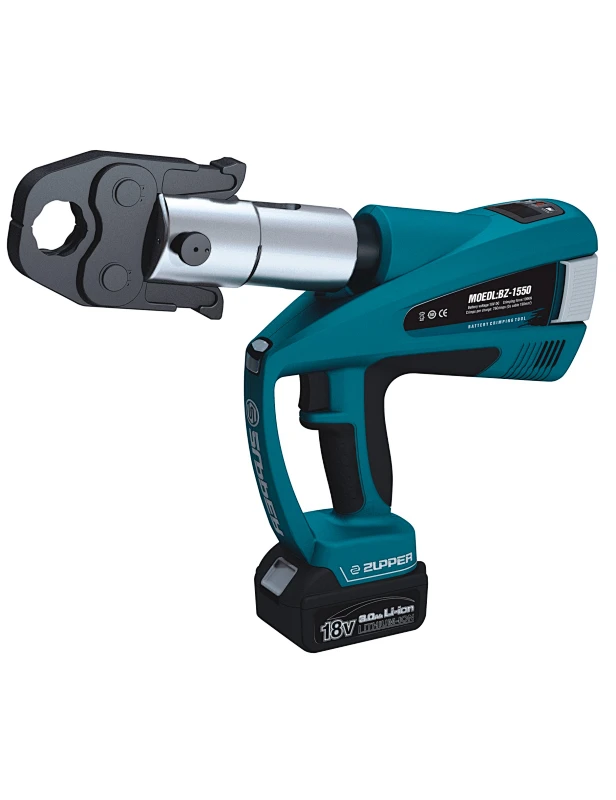

• Specification Code:BZ-1550

Rated clamping force: 32KN
Rated working Pressure: 52Mpa
Crimp/Charge: 350times(DN20 Stainless steel pipe)
Piston Stroke: 40mm
Packing:Plastic box
Clamping range:
12-54mm(1/2"-2") for stainless steel pipe
12-108mm(1/2"-4") for PEX‚Multi-layer and copper pipe
NOTE: In order to meet demand please provide appropriate size and a standard of tube when place order.
Crimping cycle: 3-6s(depends on diameter of pipe)
Working temperature:-10℃~40℃
Battery: DC 18V‚ 4.0Ah
Charger time:80mins

Accessories:
Battery: 2pcs
Charger: 1pc
Sealing ring of cylinder: 1pc
Sealing ring of safety valve: 1set
