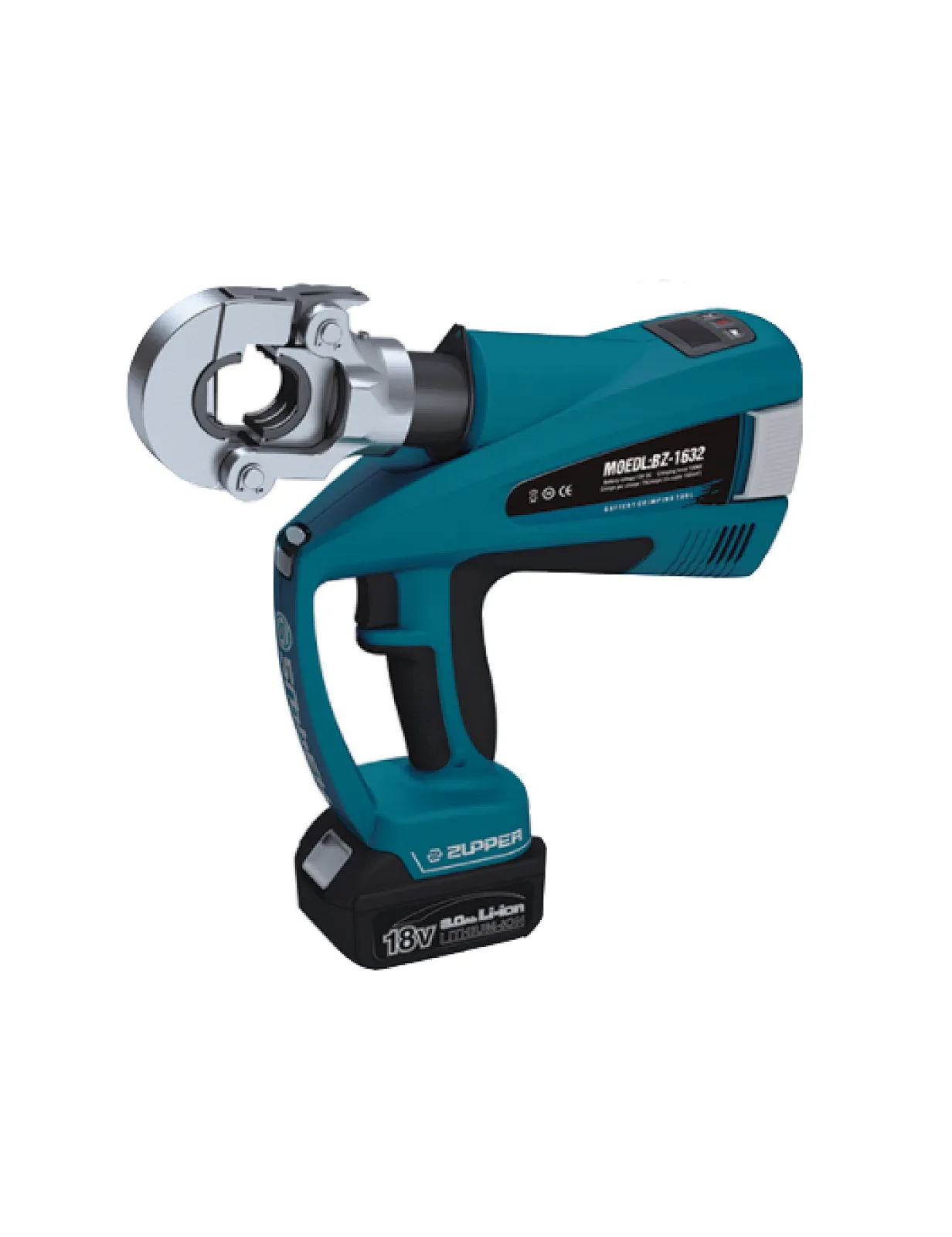

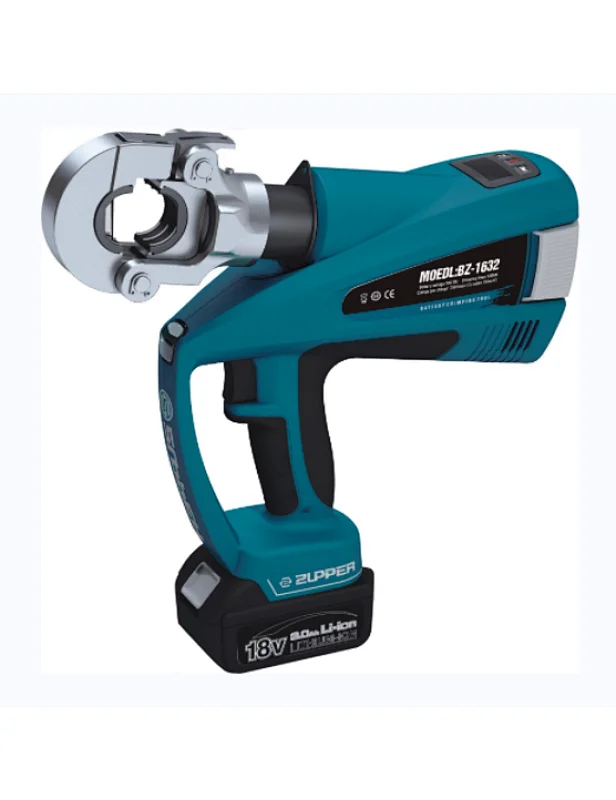

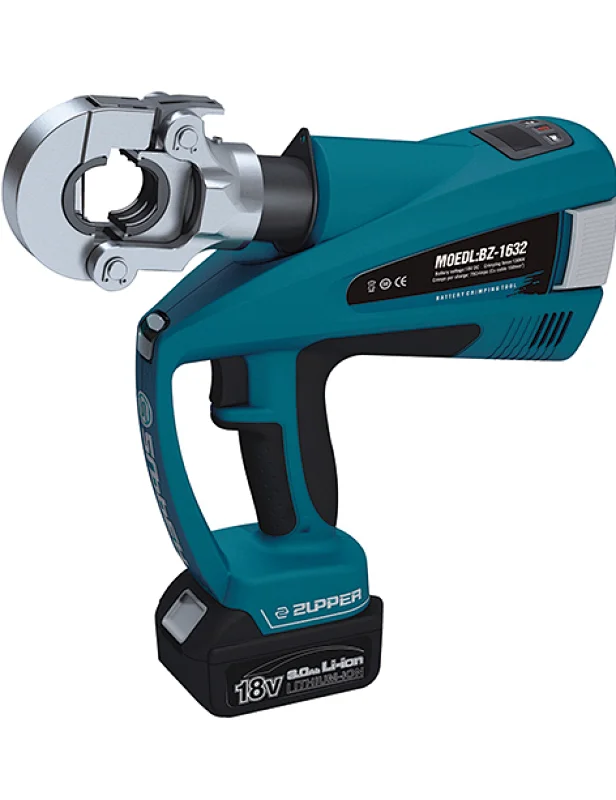

• Specification Code:BZ-1632

Crimping force: 60KN
Aplications: Copper, Stainless Steel,
Packing:Plastic box
Multi-layercomposite Pipe, PEX Pipe.
Stroke: 17mm
Crimp/Charge: 350times(DN20 Stainless steel pipe)
Crimping cycle: 3-6s
Battery: DC 18V, 4.0Ah
Charger: AC100-240V, 50-60Hz
Rated Pressure: 63Mpa

Accessories:

Crimping die: H type:Φ16.Φ20.Φ25.Φ32mm SV type:Φ16.Φ20.Φ25. TH type:Φ16.Φ20.Φ26.Φ32mm

Battery: 2pcs
Charger: 1pc
Sealing ring of cylinder: 1pc
Sealing ring of safety valve: 1set
Package: plastic box
Crimping die: choose one type according to your requirement. Check below info.
