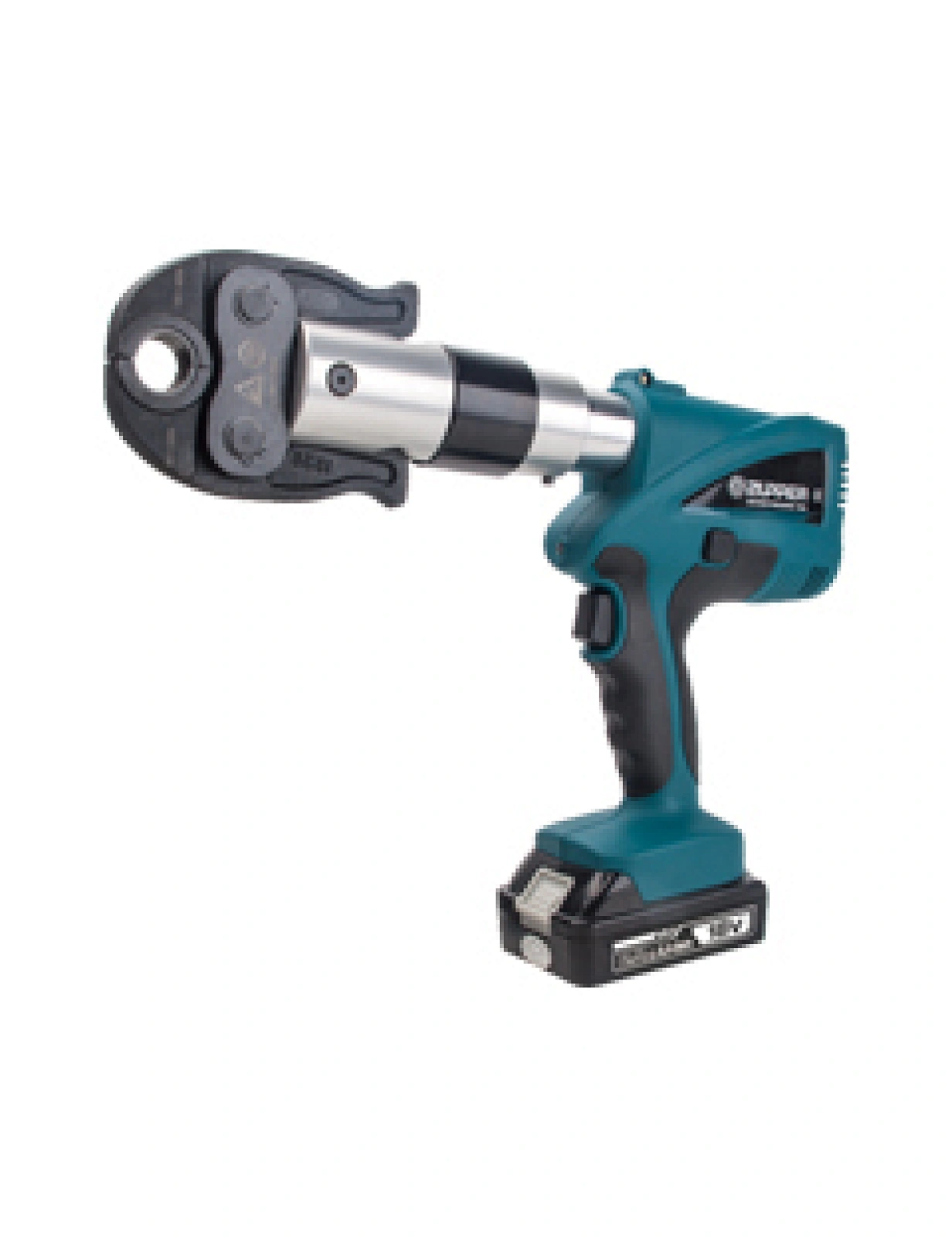

• Specification Code:BZ-1930

Capacity: 12-28mm(1/2-1") Stainless steel pipe,
12-35mm(1/2-1")Copper pipe,
12-32mm PEX&Multi-layer pipe
Output:19KN
Stroke:30mm
Oil capacity:Approx. 60ml
Crimping cycle time:2.5~4s
Crimping cycles/charge:180cycles (DN 20 Stainless Steel)
Packing:Plastic box
Battery: 18V Li-ion 2.5Ah
Battery Charger: AC 100-240V
Charging time: Approx. 50mins
Service Interval: 30000cycles
Weight: Approx.2.4kgs (tool with battery)
Approx. 3.9kgs (tool with battery and jaw)
Tool size:300×286×75mm
ACCESSORIES：
Battery: 2pcs
Charger:1pc
sealing ring of cylinder:1 set
sealing ring of safety valve:1 set
