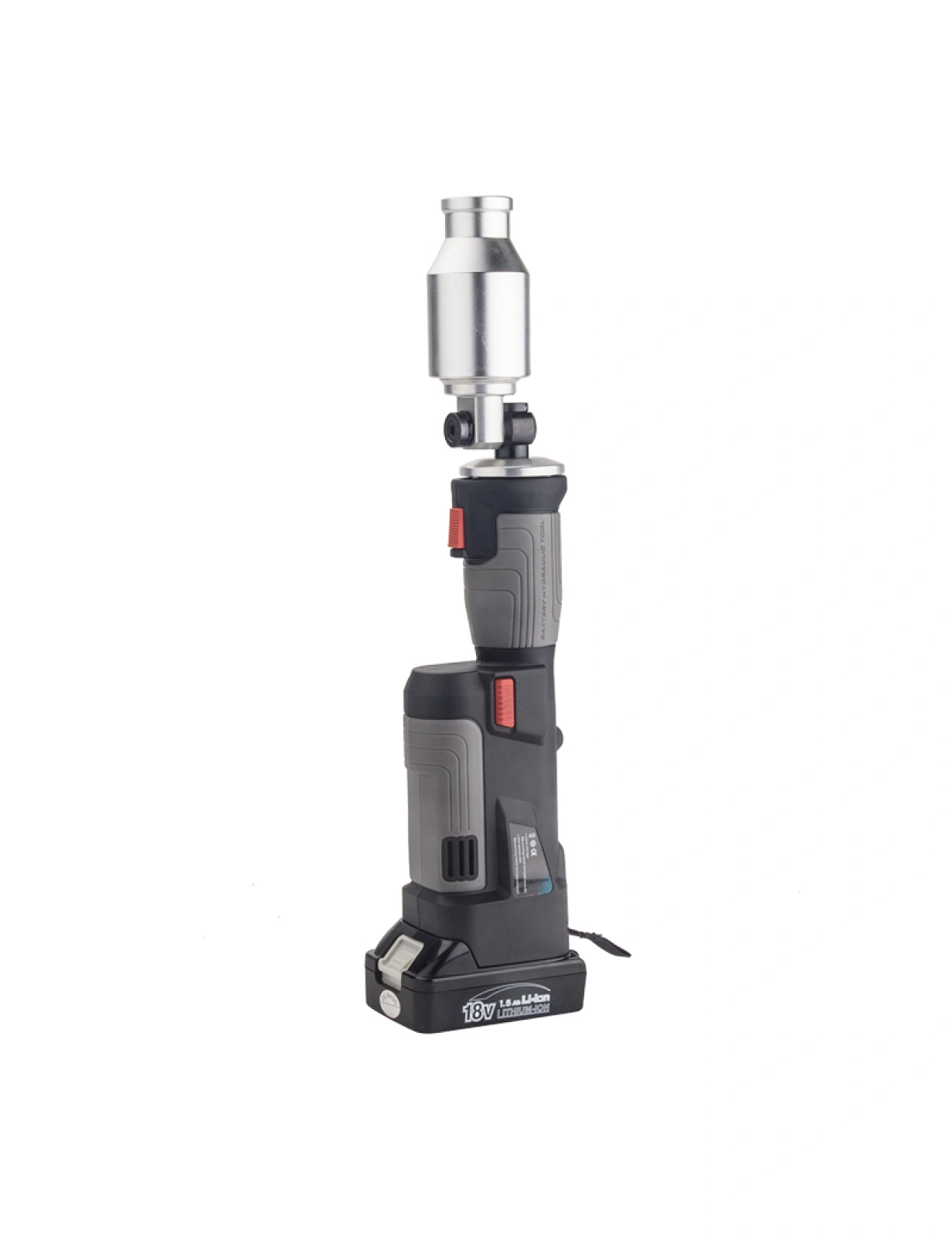

• Specification Code:PZ-6AL

Max. output: 60KN
Stroke: 25mm
Weight of Tool: 2.25kg
Packing:Plastic box
Size of tool: 392x116x75
Thread of piston: 3/4-19UN
Time/charge: 250 times (Max. mild steel 3mm‚ Ф49.6mm)
Voltage of battery: 18V DC
Capacity of battery:2.0Ah
Voltage of charger: 100~240V AC
Charging time:40 MINS
Max punching size:
3.5mm mild steel: Max. punching hole 61.5mm( pipe conduct 2”)
2mm mild steel: Max punching hole 161.9mm ( pipe conduct 6”)
2mm stainless steel: Max punching hole 61.5mm ( pipe conduct 2”)
Feature:
180o x 360orotary punching head suit to working in narrow space
One trigger to operate and retraction in automatic or manual
According to human body design with antislip handle‚ easy to hold
Microcomputer control system inside‚ double safety protection
LED light ensure to working in dark site
