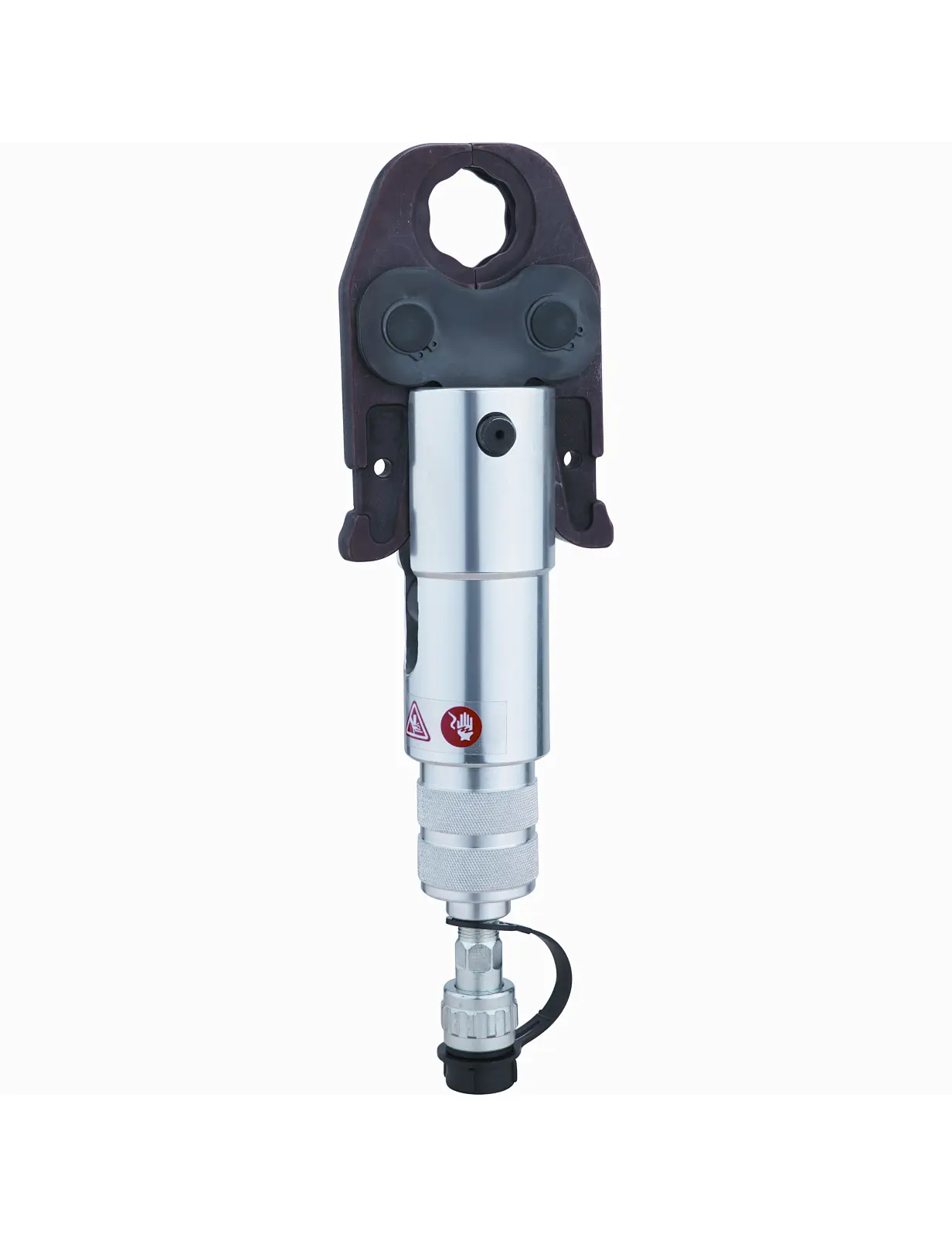

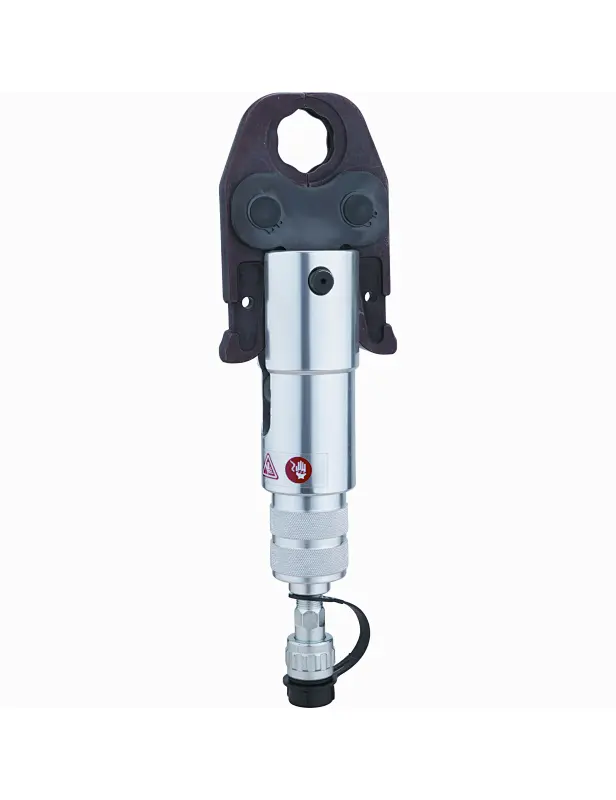

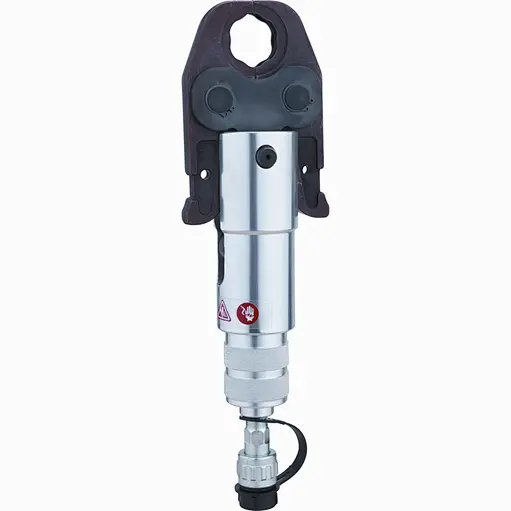

Hydraulic Press Tool
price
US $105.00 - US $136.50
FHT-1550
Quantity
Rated clamping force:≧32
Rated working pressure:52Mpa
Piston stroke:40mm
Crimping range:Thin-wall stainless steel pipe,copper pipe MAX DN54,XPAP,PE MAX DN75
Clamp die specification for thin-wall stainless steel pipe,copper pipe (Normal OD):
15,18,22,28,32,42,54
Clamp die specification for XPAP:
TH type:16,20,26,32 U type: 16,20,25,32
Clamping die specification for PEX:
15(3/8"),18(1/2"),20(5/8"),24(3/4"),30(1")
NOTE: in order to meet demand of the tube, please provide appropriate size and a standard of tube when place order.
Working temperature:-10℃～40℃
Rated working pressure:52Mpa
Piston stroke:40mm
Crimping range:Thin-wall stainless steel pipe,copper pipe MAX DN54,XPAP,PE MAX DN75
Clamp die specification for thin-wall stainless steel pipe,copper pipe (Normal OD):
15,18,22,28,32,42,54
Clamp die specification for XPAP:
TH type:16,20,26,32 U type: 16,20,25,32
Clamping die specification for PEX:
15(3/8"),18(1/2"),20(5/8"),24(3/4"),30(1")
NOTE: in order to meet demand of the tube, please provide appropriate size and a standard of tube when place order.
Working temperature:-10℃～40℃
