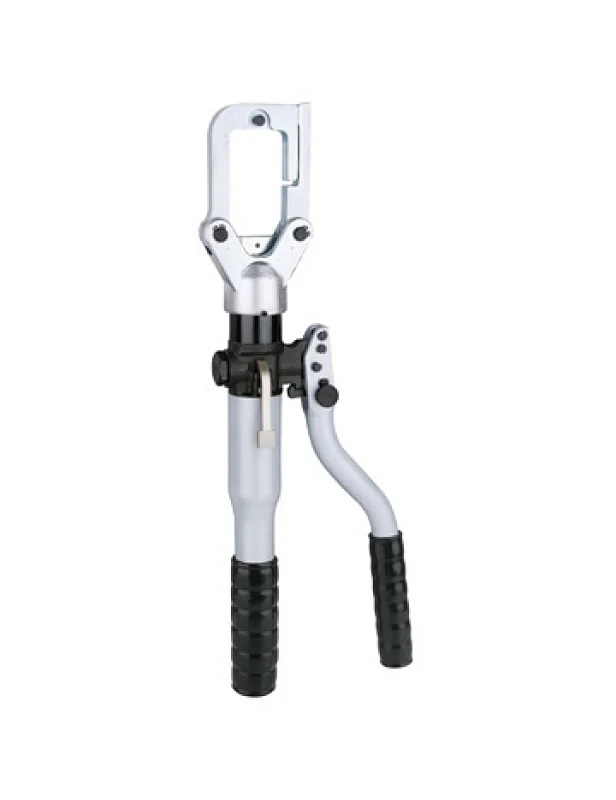

Hydraulic Multi-functional tool
price

US $294.00 - US $382.20

HT-60UNV
Quantity
Crimping force: 60KN
Stroke: 42mm
Crimping range: Cu 16-300mm2
Al 10-240mm2
Cutting range: 45mm for Cu/Al cable and amoured Cu/Al cable.
Punching range: ¢22.5-61.5mm in the 3.5mm mild steel
Length:540mm
Weight:3.5kg
Package:steel case
ACCESSORES:
Crimping dies:16,25,35,50,70,95,120,150,185,240,300mm2
Punches&die(Type C):22.5,28.3,34.6,43.2,49.6,61.5mm
Blade: 1 set
Adapter for crimping: 1pc
Adapter for punching: 1 pc
3/4",16UN Draw stud:1 pc
7/16",20UN Draw stud:1 pc
Spacer: 1 pc
Sealing ring of cylinder: 1 set
Sealing ring of safety valve: 1 set
