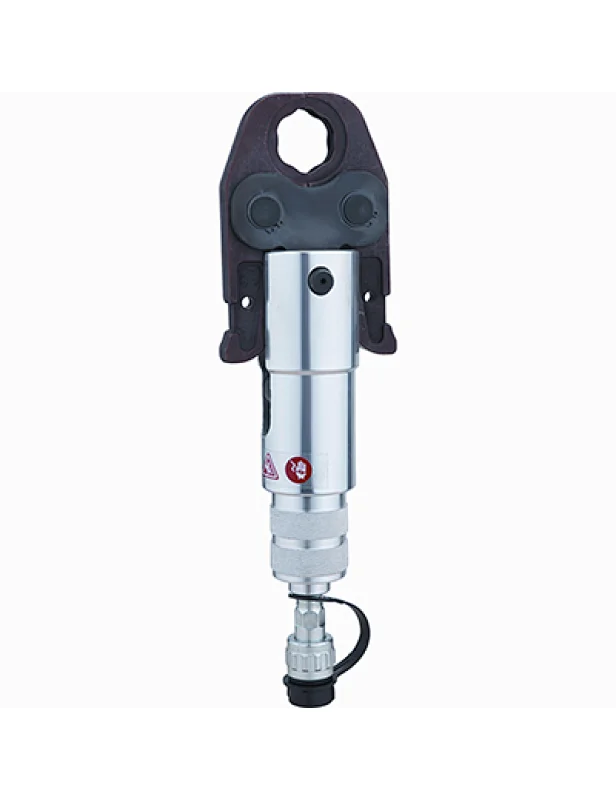

液压压接工具
price

US $95.00 - US $123.50

FHT-1550..
Quantity
Rated clamping force:≧32
Rated working pressure:52Mpa
Piston stroke:40mm
Crimping range:Thin-wall stainless steel pipe‚copper pipe MAX DN54‚XPAP‚PE MAX DN75
Clamp die specification for thin-wall stainless steel pipe‚copper pipe (Normal OD):
15‚18‚22‚28‚32‚42‚54
Clamp die specification for XPAP:
TH type:16‚20‚26‚32 U type: 16‚20‚25‚32
Clamping die specification for PEX:
15(3/8")‚18(1/2")‚20(5/8")‚24(3/4")‚30(1")
NOTE: in order to meet demand of the tube‚ please provide appropriate size and a standard of tube when place order.
Working temperature:-10℃~40℃
